How to Use This Manual

Legend and Tools

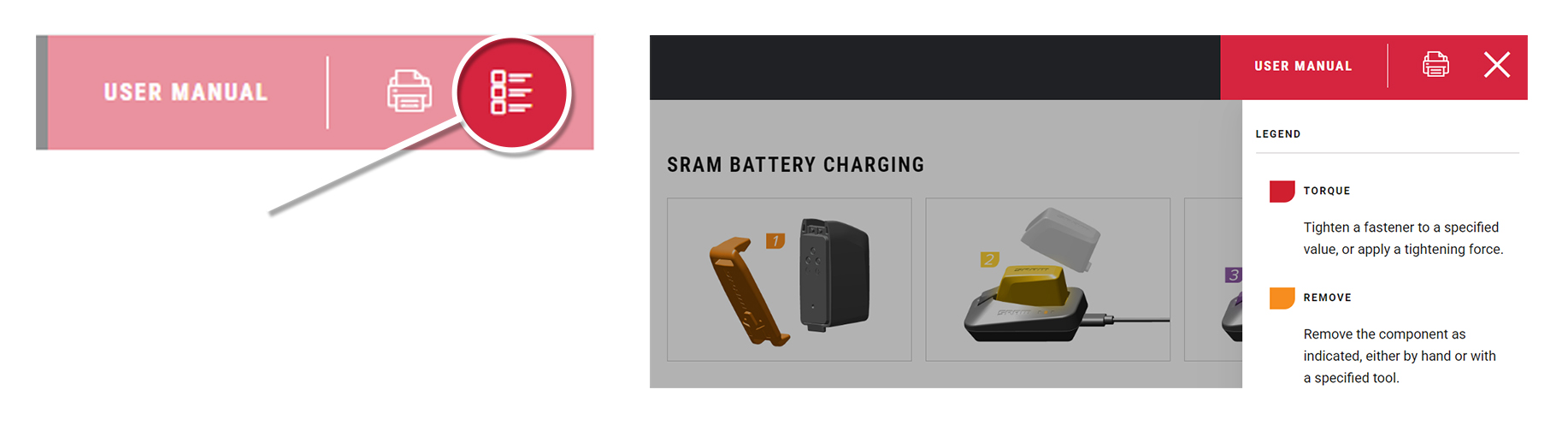

Click on the icon at the top right corner of the screen to display the color legend and the complete list of tools and supplies for this manual in a scrollable dropdown list.

The colors and symbols featured in this manual correspond to specific actions or procedures. A detailed description for each color and symbol is contained in the dropdown.

How to Use Filters

Use the dropdown lists in the SELECT FILTERS: window at the top left of the page to select the preferred language, product model code, and instructional content. Product instructional content filters will vary.

Language Filter: Select Language first. When a new language is selected, all other selected filters will reset.

All non-Language Filters: To reset a non-language filter, click on the X.

Model Code Identification

Product model code and specification details can be identified with the serial number on the product. Model codes can be used to identify the product type, series name, model name, and product version associated with the production model year. Product details can be used to identify spare parts, service kit, and lubricant compatibility.

Model Code example: RD-XX-E-B1

RD = Product Type - Rear Derailleur

XX = Platform/Series - XX

B1 = Version - (B - Second generation, 1 - first iteration)

To identify the model code, locate the serial number on the product and enter it into the Search by Model Name or Serial Number field at www.sram.com/service.

Product Appearance May Vary

Your product's appearance may vary from those pictured in this manual.

Images and examples pictured are for conceptual purposes and may vary from product design, appearance, and performance.

Warranty and Trademark

Consult sram.com/service whenever a separate manual is referenced in this document.

Read the full warranty policy for your components at sram.com/en/service/warranty.

For information about trademarks used in this manual, visit sram.com/website-terms-of-use.

Tools and Supplies

Highly specialized tools and supplies are required for the replacement and maintenance of your SRAM components. We recommend that you have a qualified SRAM dealer work on your SRAM components.

Tools and Supplies

Safety and Protection Supplies
Safety Requirements symbol
Safety Glasses
Nitrile Gloves
Common Tools
Hex tool icon
Hex Wrench or Hex Bit Socket
2, 8 mm
Torque Wrench
Pin Spanner
2.3 mm
Bicycle Tools
Headset Press
Bottom Bracket Tool
12-Notch Bottom Bracket Tool - 16-Notch Bottom Bracket Tool-Large
DUB Self-Extracting Cap Tool
Lubricants and Fluids
Grease
Threadlock
Medium-compound strength threadlocker
Isopropyl Alcohol

SRAM DUB Bottom Bracket Specifications

DUB Bottom Bracket Anatomy

SRAM DUB BB Anatomy

1. Outer left, non-drive side spacer

4. Frame shell width

7. Outer right, drive side spacer

2. Left side cup

5. Inner right, drive side spacer

3. Inner left, non-drive side spacer

6. Right side cup and center tube

DUB Road Bottom Bracket Spacer Chart

Frame Shell

Interface and

Width (mm)

Crankset

Outer Left

Spacer (mm)

Inner Left

Spacer (mm)

Inner Right

Spacer (mm)

Outer Right

Spacer (mm)

BSA (68)

Road

-

-

-

3

BSA (68)

Road - Wide

2.5

-

-

5.5

BSA (73)

Road - Wide

-

-

-

3

Italian (70)

Road

-

-

-

2

Italian (70)

Road - Wide

2.5

-

-

4.5

T47 (68)

Road

-

-

-

3

T47 (68)

Road - Wide

2.5

-

-

5.5

T47 (77-A)

Road

-

-

-

3

T47 (77-A)

Road - Wide

2.5

-

-

5.5

T47 (85.5)

Road

-

-

-

3

T47 (85.5

Road - Wide

2.5

-

-

5.5

PressFit (86.5)

Road

-

-

-

3

PressFit (86.5)

Road - Wide

2.5

-

-

5.5

PressFit 30 (68)

Road

-

-

-

3

PressFit 30 (68)

Road - Wide

2.5

-

-

5.5

PressFit 30 (73)

Road - Wide

-

-

-

3

PressFit 30 (73-A)

Road

-

-

-

3

PressFit 30 (73-A)

Road - Wide

2.5

-

-

5.5

PressFit 30 (79-A)

Road

-

-

-

3

PressFit 30 (79-A)

Road - Wide

2.5

-

-

5.5

PressFit 30 (83-A)

Road - Ai

6

-

-

9

BB386 (86.5)

Road

-

-

-

2

BB386 (86.5)

Road - Wide

2.5

-

-

4.5

BB30 (68)

Road

-

-

-

3

BB30 (68)

Road - Wide

2.5

-

-

5.5

BB30 (73)

Road - Wide

-

-

-

3

BB30 (73-A)

Road

-

-

-

3

BB30 (73-A)

Road - Wide

2.5

-

-

5.5

BB30 (83-A)

Road - Ai

-

-

-

4.5


DUB BSA / DUB Italian / T47 Shell Measurements

SRAM DUB BSA bottom brackets are compatible with frame shells with English threads.

SRAM DUB T47 bottom brackets are compatible with frame shells with M47 x 1 threads.

SRAM DUB Italian bottom brackets are compatible with frame shells with 36 mm x 24 tpi threads.


SRAM DUB Bottom Bracket Installation

Bottom Bracket Shell Preparation

Spray isopropyl alcohol on the bottom bracket shell and clean it. The shell should be free of dirt, paint, grease, and metal burrs. For best results, have your frame faced by a professional bicycle mechanic.

Notice

Consult your frame manufacturer to confirm the bottom bracket is compatible with the bottom bracket shell in your frame.

Removing the center tube from the bottom bracket to accommodate internal brake hose routing is not recommended, and may shorten the lifespan of the bottom bracket.

Your product's appearance may differ from the pictures contained in this publication.

SRAM DUB BB Preparation

1. Apply grease to the inside of the frame shell.

2. Prepare the bottom bracket for installation. Remove the left side cup from the center tube. Remove the left side outer spacer, if applicable. Remove the right side outer spacer from the right side cup.

Notice

Make sure the right and left spacers are removed before installing the cups. Failure to remove the spacer(s) will damage the bearings.

DUB T47 Installation

SRAM DUB T47 Installation
50 N·m (443 in-lb)

1. Use a 16-notch external bottom bracket tool to tighten the non-drive side cup into the frame.

2. Install the left external spacer as indicated by the spacer chart.

3. Use a 16-notch external bottom bracket tool to tighten the drive side cup into the frame.

4. Install the right external spacer as indicated by the spacer chart.

DUB T47 Spacer Chart

Frame Shell

Interface and

Width (mm)

Crankset

Outer Left

Spacer (mm)

Inner Left

Spacer (mm)

Inner Right

Spacer (mm)

Outer Right

Spacer (mm)

T47 (68)

Road

-

-

-

3

T47 (68)

Road - Wide

2.5

-

-

5.5

T47 (77-A)

Road

-

-

-

3

T47 (77-A)

Road - Wide

2.5

-

-

5.5

T47 (85.5)

Road

-

-

-

3

T47 (85.5

Road - Wide

2.5

-

-

5.5


DUB Crankset Installation

DUB Crankset with Preload Adjuster Installation

SRAM DUB Crankset Installation
SRAM DUB Crankset Installation
SRAM DUB Crankset Installation O-Ring

1. Apply grease to the indicated areas on the spindle.

2. Install the non-drive side crankarm and spindle into the bottom bracket. Make sure the blue o-rings remain installed in the gland in the left and right bottom bracket cups during spindle installation.

8 mm
54 N·m (478 in-lb)
SRAM DUB Crankset Installation
2 mm

3. Install the drive-side crankarm onto the spindle.

4. Use a torque wrench with an 8 mm hex bit socket to tighten the crank arm bolt to 54 N·m (478 in-lb).

5. Use a rubber or plastic mallet to tap the drive side crank arm until it is fully seated.

6. Remove play from the system by turning the preload adjuster in the + direction until it stops or makes contact with the bearing shield.

7. Use a 2 mm hex wrench to tighten the bolt until the adjuster edges touch.

Notice

Do not use a ball-end style hex wrench to tighten the preload adjuster.

Do not overtighten the preload adjuster as this could damage the bearing. Do not overtighten the bolt. It is okay if there is a gap in the adjuster, as long as the top edges touch.

SRAM DUB Crankset Removal

8. Check the crankset for play by rocking the crankarms back and forth.

Notice

If there is play in the crankset, remove the crankarms and apply additional grease to the spindle. Turn the preload adjuster in the opposite direction of the + sign until it stops. Repeat the installation procedure until play is eliminated.

SRAM DUB Crankset Installation Pedal Washer
Torque pedal to 54 Newton meters
54 N·M (477 in-lb)
DUB Crankset Installation Pedal

9. Apply grease to the crank arm pedal threads.

10. Install the washer between the crank arm and pedal.

11. Tighten the pedal shaft to 54 N·m (477 in-lb) unless otherwise specified by the pedal manufacturer.

Notice

The non-drive side pedal bore is reverse threaded.

Warning

Make sure the pedal shaft threads do not extend past the back of the crankarm. Do not use the pedal if the shaft is exposed. This could interfere with the frame or chain and result in a crash.


DUB Crank and Bottom Bracket Maintenance

DUB Crankset and Bottom Bracket Maintenance

Inspect the crankset and bottom bracket for play, and tighten as needed. Clean the crankset and bottom bracket with water and mild soap.

Replace the bottom bracket when it no longer rotates smoothly.

Notice

Do not clean the crankset or bottom bracket with a power washer.

Routinely check the chainring bolts, crankset bolt, and preload adjuster for the correct torque values; never ride with loose bolts.

Consult the Chainrings and Spiders User Manual on www.sram.com for complete torque specifications.

Notice

Failure to check your chainring bolts could lead to the chainring bolts backing out of the chainring.
