COIN BATTERIES

NO OBVIOUS SYMPTOMS

Unfortunately, it is not obvious when a button or coin battery is stuck in a child's esophagus. There are no specific symptoms associated with this.

The child might:

• Cough, gag or drool a lot

• Appear to have an upset stomach or a virus

• Be sick

• Point to their throat or stomach

• Have pain in their abdomen, chest, or throat

• Be tired or lethargic

• Be quieter or more clingy than usual or otherwise “not themselves”

• Lose their appetite or have a reduced appetite, not want to eat solid food, or be unable to eat solid food

These sorts of symptoms vary or fluctuate, with the pain increasing and then subsiding. A specific symptom to button and coin battery ingestion is vomiting fresh (bright red) blood. If the child does this seek immediate medical help. The lack of clear symptoms is why it is important to be vigilant with “flat” or spare button or coin batteries in the home and the products that contain them.

BATTERY AND BATTERY CHARGER

Click on the icon at the top right corner of the screen to display the color legend and the complete list of tools and supplies for this manual in a scrollable dropdown list.

The colors and symbols featured in this manual correspond to specific actions or procedures. A detailed description for each color and symbol is contained in the dropdown.

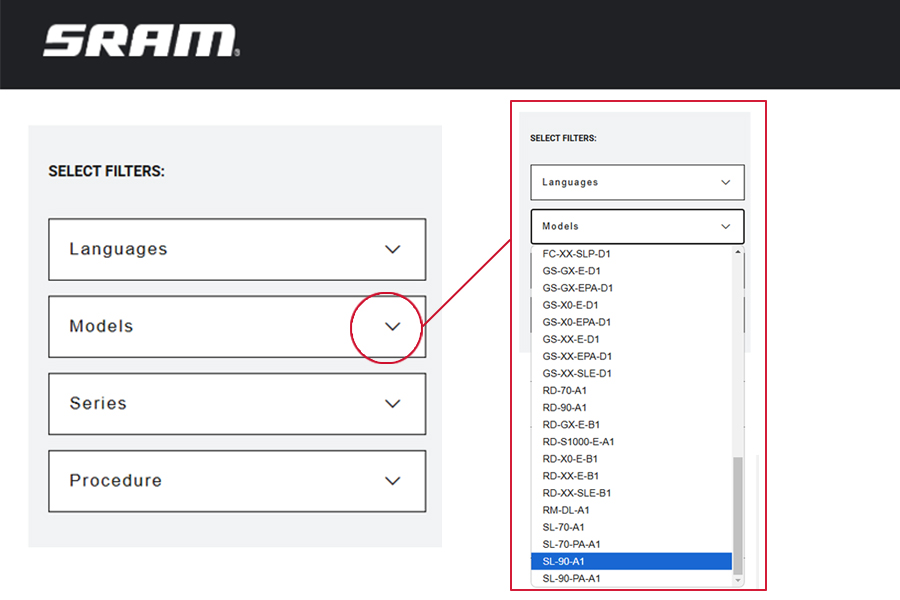

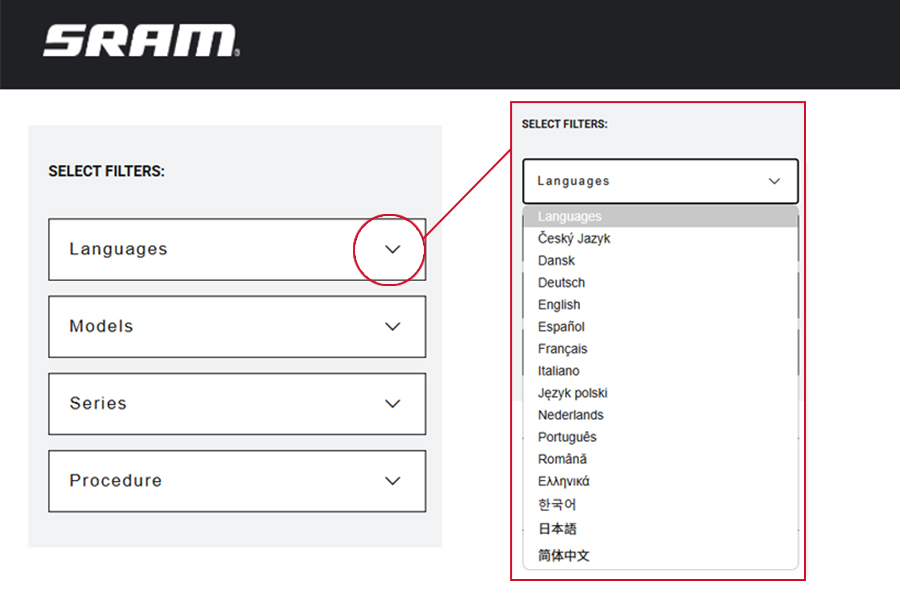

Use the dropdown lists in the SELECT FILTERS: window at the top left of the page to select the preferred language, product model code, and instructional content. Product instructional content filters will vary.

Language Filter: Select Language first. When a new language is selected, all other selected filters will reset.

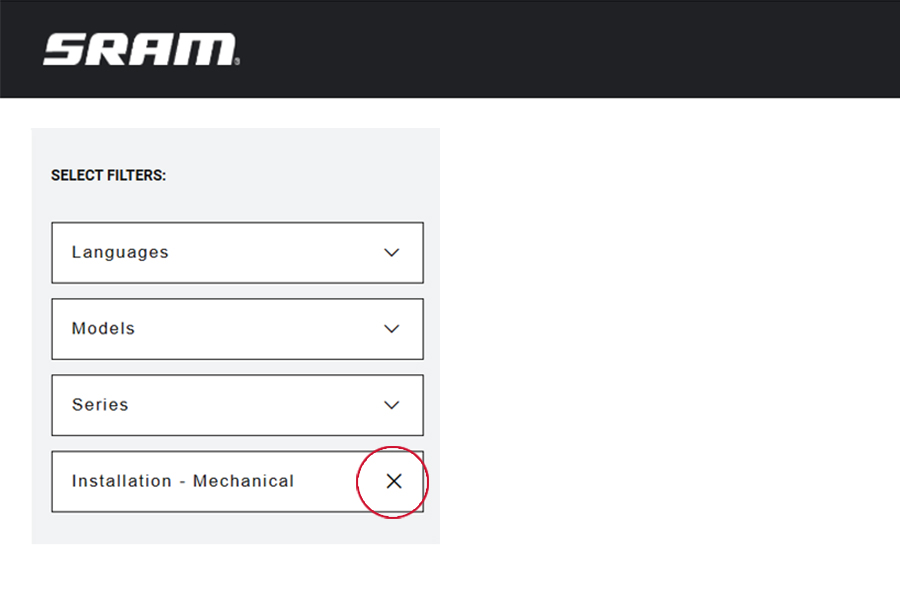

All non-Language Filters: To reset a non-language filter, click on the X.

Product model code and specification details can be identified with the serial number on the product. Model codes can be used to identify the product type, series name, model name, and product version associated with the production model year. Product details can be used to identify spare parts, service kit, and lubricant compatibility.

Model Code example: RD-XX-E-B1

RD = Product Type - Rear Derailleur

XX = Platform/Series - XX

B1 = Version - (B - Second generation, 1 - first iteration)

To identify the model code, locate the serial number on the product and enter it into the Search by Model Name or Serial Number field at www.sram.com/service.

Your product's appearance may vary from those pictured in this manual.

Images and examples pictured are for conceptual purposes and may vary from product design, appearance, and performance.

Consult sram.com/service whenever a separate manual is referenced in this document.

Read the full warranty policy for your components at sram.com/en/service/warranty.

For information about trademarks used in this manual, visit sram.com/website-terms-of-use.

Download the SRAM AXS app, available for free in the app stores, to create your SRAM account, add your components, and customize your SRAM AXS experience.

Through the app, you will also be able to:

• Connect your components via Bluetooth to the SRAM AXS app.

• Build and personalize multiple bicycle profiles.

• Monitor bicycle performance and readiness.

• Customize component behavior to match your riding style.

• Assign custom actions to your controls.

For component customization within the SRAM AXS app, all AXS components must be paired into a single system. Procedures for pairing multiple systems, such as an AXS seatpost and AXS drivetrain, can be found in the System Pairing section.

For optimal system performance and compatibility make sure you have installed the latest version of the SRAM AXS app and component firmware. Firmware updates are performed through the app.

Highly specialized tools and supplies are required for the replacement and maintenance of your SRAM components. We recommend that you have a qualified SRAM dealer work on your SRAM components.

Consult the SRAM Battery and Charger User Manual for additional information.

The complete SRAM Eagle Transmission System installation consists of the following steps.

1. SRAM Battery Charging and Installation

2. XD Cassette Installation

3. DUB Bottom Bracket Installation

4. DUB Crankset Installation

5. AXS Controller Installation

6. UDH Removal

7. Eagle Transmission Derailleur Installation

8. T-Type Chain Sizing and Installation

Previously installed components may be used in an Eagle Transmission System if they are compatible with SRAM Eagle Transmission and have been correctly installed.

The complete SRAM Eagle Mechanical Transmission System installation consists of the following steps.

1. Cassette Installation

2. DUB Bottom Bracket Installation

3. DUB Crankset Installation

4. SL Trigger Shifter Installation and Optional Mechanical Dropper Lever Installation

5. UDH Removal

6. Eagle Mechanical Transmission Derailleur Installation

7. T-Type Chain Sizing and Installation

8. Cable Routing and Adjustment

Previously installed components may be used in an Eagle Transmission System if they are compatible with SRAM Eagle Transmission and have been correctly installed.

1. Remove the battery cover from the battery.

2. Install the battery into the charger. The LED on the charger will turn yellow while charging, and turn green when the battery is fully charged.

3. Press down on the release button.

4. Remove the battery from the charger.

Consult the SRAM Battery and Charger User Manual user manual for charging instructions, battery maintenance, and travel guidelines.

1. Open the battery latch.

2. Remove the battery block.

3. Insert the fully charged SRAM battery into the derailleur.

4. Close the battery latch.

When installed correctly, the latch will snap into place and the LED will flash green once.

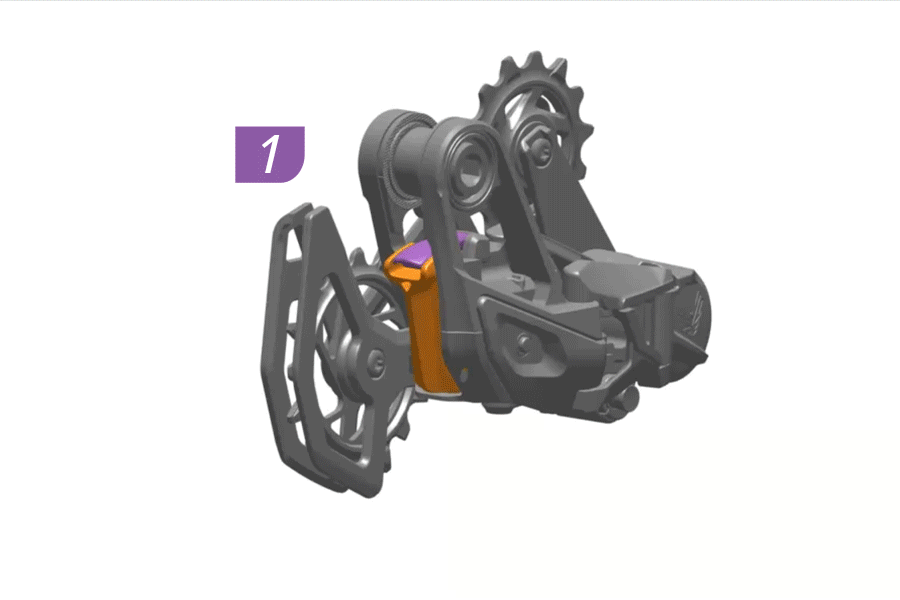

1. Open the battery latch.

2. Remove the battery block.

3. Insert the fully charged SRAM battery into the derailleur.

4. Close the battery latch.

When installed correctly, the latch will snap into place and the LED will flash green once.

1. Insert the extension cord into the derailleur.

2. Close the battery latch. When installed correctly, the latch will snap into place.

The GX and S1000 derailleurs are only compatible with extension cord model EP-EAC-ECD-A1.

1. Insert the extension cord into the derailleur.

2. Close the battery latch. When installed correctly, the latch will snap into place.

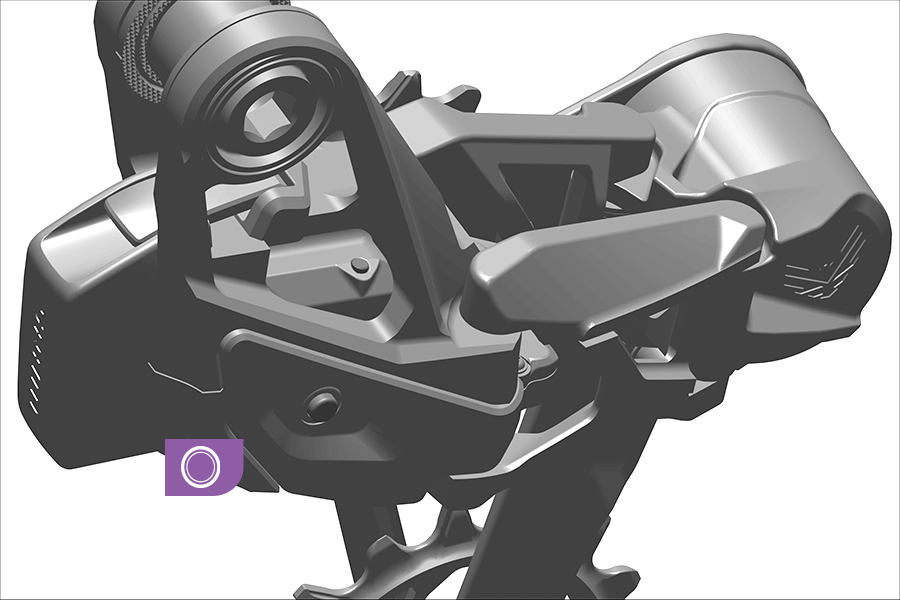

The AXS component LED indicators illuminate when the component AXS button is pressed and when a shift is performed. The color of the LED indicates the battery charge level.

During use, if an AXS component has a blinking red LED, the battery must be recharged or replaced.

The LED on the transmission will blink red and green when a shift has been rejected. Shifts can be rejected when the temperature is below -15 °C (5 °F).

Battery levels can also be checked in the SRAM AXS app.

Spray isopropyl alcohol on the bottom bracket shell and clean it. The shell should be free of dirt, paint, grease, and metal burrs. For best results, have your frame faced by a professional bicycle mechanic.

1. Apply grease to the inside of the frame shell.

2. Prepare the bottom bracket for installation. Remove the left side cup from the center tube. Remove the left side outer spacer, if applicable. Remove the right side outer spacer from the right side cup.

1. Apply grease to the indicated areas on the spindle.

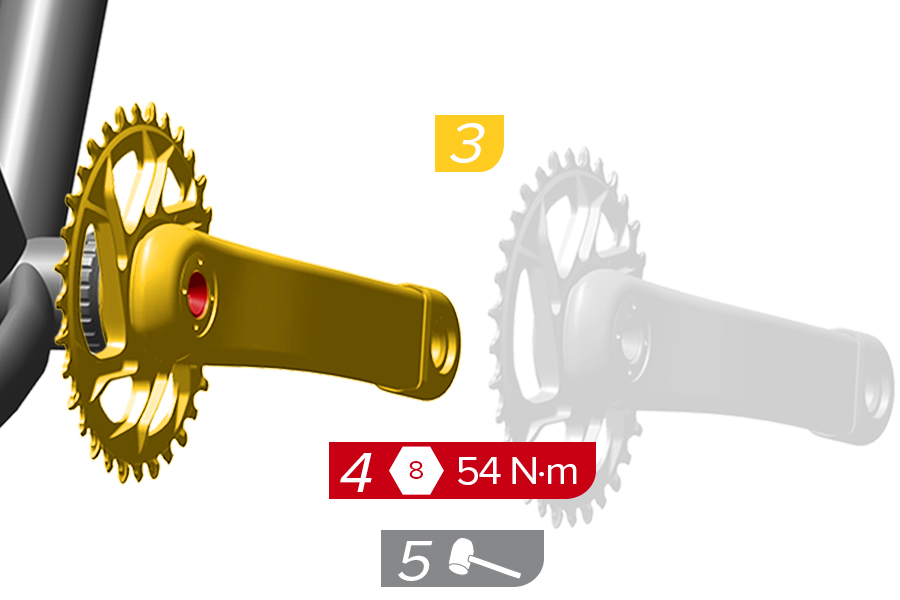

2. Install the non-drive side crankarm and spindle into the bottom bracket. Make sure the blue o-rings remain installed in the gland in the left and right bottom bracket cups during spindle installation.

3. Install the drive-side crankarm onto the spindle.

4. Use a torque wrench with an 8 mm hex bit socket to tighten the crank arm bolt to 54 N·m (478 in-lb).

5. Use a rubber or plastic mallet to tap the drive side crank arm until it is fully seated.

6. Remove play from the system by turning the preload adjuster in the + direction until it stops or makes contact with the bearing shield.

7. Use a 2 mm hex wrench to tighten the bolt until the adjuster edges touch.

8. Check the crankset for play by rocking the crankarms back and forth.

9. Apply grease to the crank arm pedal threads.

10. Install the washer between the crank arm and pedal.

11. Tighten the pedal shaft to 54 N·m (477 in-lb) unless otherwise specified by the pedal manufacturer.

1. Align the integration cap with the bolt holes on the right side crankarm.

2. Install the integration cap.

3. Tighten the bolts.

4. Apply grease to the left and right side ISIS spindle.

5. Install the right side crankarm onto the spindle.

6. Tighten the crankarm bolt.

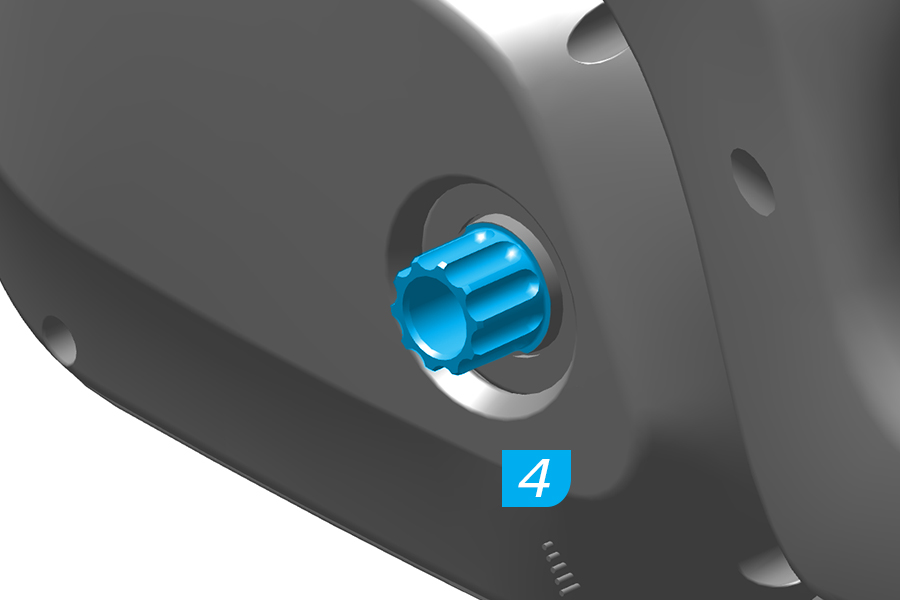

7. Install the left side crankarm onto the spindle.

8. Tighten the crankarm bolt.

The derailleur begins and ends the pairing session.

The AXS Controller(s) must be paired with the derailleur before use.

Additional AXS components can be paired with the derailleur to create one AXS system. After multiple AXS components have been paired into one system, functions and preferences can be configured in the SRAM AXS app.

Begin the pairing session with the derailleur.

1. Press and hold the AXS button on the derailleur until the AXS LED blinks slowly, then release.

For setups using two AXS controllers, pair the right controller first.

2. Press and hold the AXS button on the controller until the green LED blinks quickly, then release.

If more than one controller (e.g. Reverb AXS or Left Flight Attendant) is paired into the system, the controller paired into the system first will function as the default right-side controller and is shown as 'Right' in the AXS app.

3. Press and release the AXS button on the derailleur to end the pairing session, or wait 30 seconds for the session to time out. The AXS LED will stop blinking.

Successful pairing can be verified with the SRAM AXS app. All paired components will be listed below the Transmission derailleur.

If any component does not respond, repeat the pairing process. The pairing process does not need to be repeated when any battery is removed and/or replaced. The pairing process must be repeated if any components are replaced, added, or removed.

CAGE MODES

The Cage Mode button is used to position the derailleur cage to the various Cage Modes.

Open Mode: The derailleur cage is fully extended for rear wheel removal and installation.

Setup Mode: The derailleur cage is slightly extended to align the cage with either of the two key lines.

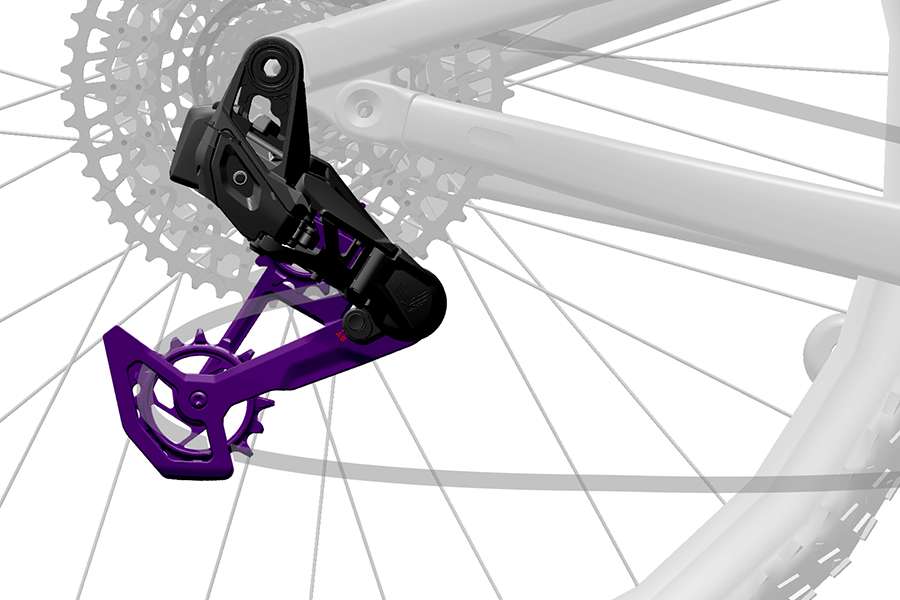

Ride Mode: The Cage Mode button is not depressed, and the derailleur cage is unlocked and not extended.

This section covers preparing the chain and derailleur for installation on bicycle frames not listed in the SRAM Full Mount Chain Length Guide or AXS App.

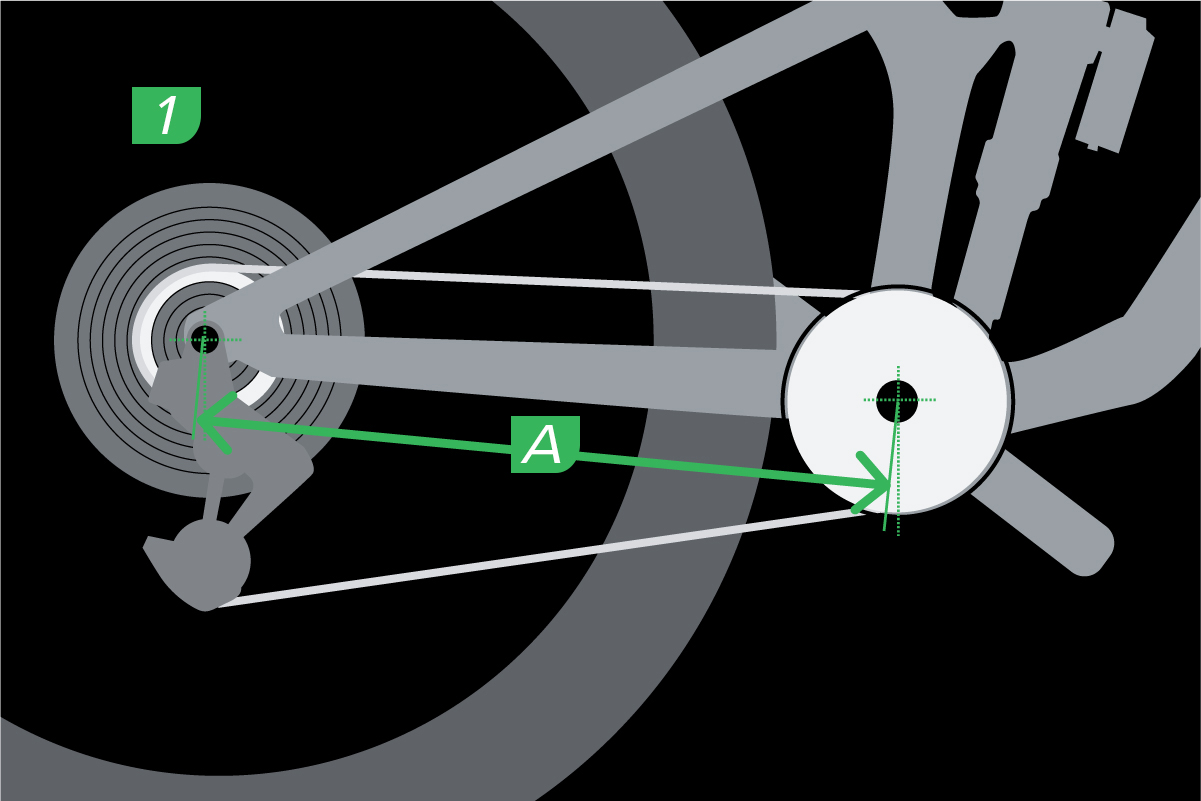

1. Measure the direct distance from the bottom bracket axis to the hub axis with the frame fully extended at 0% travel to determine the chainstay length (A) in millimeters.

2. Consult this chart to determine the length of chain links needed for your T-Type chain according to the chainring and chainstay length (A) combination on your bicycle.

Purple Chart Cells: Some bicycles may require more than one aftermarket chain to achieve the required length. Use a second compatible PowerLock to connect the chains and place the PowerLocks as far from each other as possible.

3. Count down from 126 to the number of chain links determined by the chart.

Use an approved chain breaker tool to break the chain at the inner link.

4. Record and use the following setup data for frames not listed in the SRAM database:

• Setup Key Position A.

• Setup Cog 21T, gear 7.

• SAG position for Tighten your Components section.

Proceed to the Setup Key Position section to continue system installation.

For Frames Not Listed in the SRAM Database and Idler Pulley Frame bikes, the bike must be in the Sag position during the Tighten the Components section.

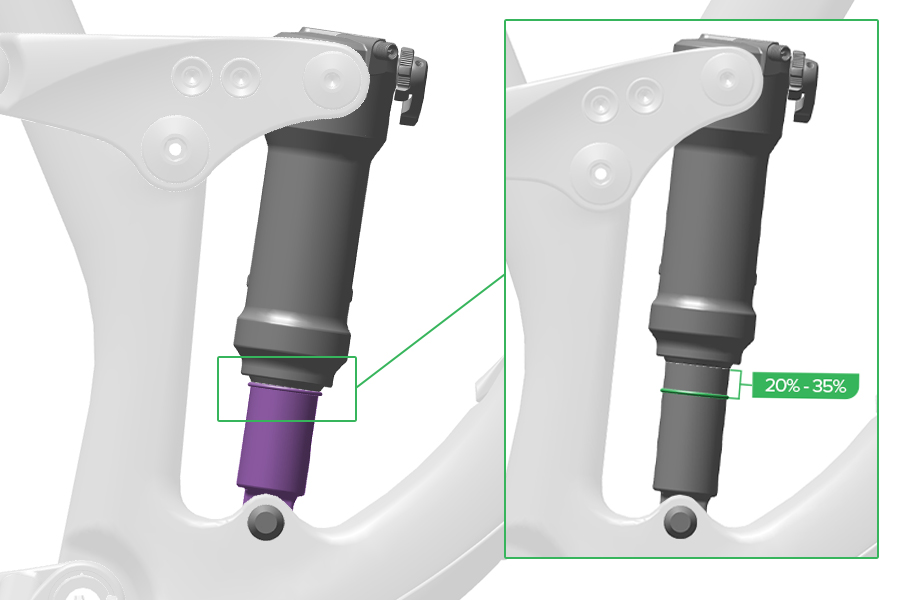

Suspension sag is the percentage of full travel that the suspension compresses when the rider, including gear, is on the bicycle in a normal riding position.

Consult your frame manufacturer’s recommendations for appropriate sag percentage (typically 20-35%), and your suspension manufacturer's user manual for instructions on setting proper sag.

This section covers preparing the chain, setup cog, and setup position for Transmission installation on bicycle frames with an upper and lower idler pulley.

1. Wrap the chain around the large chainring, through the idler pulley, and the largest cassette cog.

2. Compress the bicycle until the rear shock is fully compressed. Deflate or remove the rear shock if necessary.

3. With the bicycle compressed, pull the two ends of the chain together and add one inner link and one outer link where the chain starts to overlap.

4. Use an approved chain breaker tool to break the chain at the inner link.

* Some bicycles may require a longer than normal aftermarket chain. In some cases adding an extra PowerLock into the system will provide the correct amount of links. Make sure to place the extra PowerLock as far from the connecting PowerLock as possible.

Some idler pulley bicycles may require a longer than normal aftermarket chain. In some cases adding an extra PowerLock into the system will provide the correct amount of links. Make sure to place the extra PowerLock as far from the connecting PowerLock as possible.

5. Record and use the following setup data for idler pulley frames:

• Setup Key Position A.

• Setup Cog 21T, gear 7.

• Sag position for Tighten your Components section.

Proceed to the Setup Key Position section to continue system installation.

For Frames Not Listed in the SRAM Database and Idler Pulley Frame bikes, the bike must be in the Sag position during the Tighten the Components section.

Suspension sag is the percentage of full travel that the suspension compresses when the rider, including gear, is on the bicycle in a normal riding position.

Consult your frame manufacturer’s recommendations for appropriate sag percentage (typically 20-35%), and your suspension manufacturer's user manual for instructions on setting proper sag.

It is recommended that you periodically clean your electronic components.

Use a damp cloth to wipe off any dirt and debris. Clean the components with soap and water only. Rinse thoroughly with water and allow the components to dry.

Always maintaining a clean and lubricated drivetrain will help extend your system performance and product component service life significantly.

It is recommended that you clean your chain, cassette, and chainring after frequent use, and immediately after riding in muddy, dusty, or other adverse conditions.

Use only biodegradable non-acidic cleaners to clean the cassette, chainring, and chain. Rinse thoroughly with water and wipe dry with a rag or blow dry with pressurized air.

Lubricate the chain with a dedicated chain lubricant. Wipe off excess lube.

The chain, cassette, and chainring wear together over time as a result of normal use. Parts will last longer with regular cleaning.

To determine if the parts need to be replaced, consult the Transmission Service Matrix. Depending on use case, it may be best to change the parts together to restore optimal drivetrain performance.

After installation and setup, you may remove and reinstall the rear wheel as needed. To remove and install the wheel put the derailleur in Open Mode. Before tightening the rear axle bolt, you must release the Cage Mode button and set the derailleur to Ride Mode.

Keep the extension cord installed in the transmission. It is not necessary to remove the extension cord when cleaning, storing, or transporting your bicycle.

Every 50 hours: Check the extension cord for damage such as cuts and breaks in the insulation.

Storage conditions: Temperature from -40°C  to 70°C ( -40°F to 158°F), humidity from 10% to 85%

Operating conditions: Temperature from -10°C to 40°C (14°F to 104°F), humidity from 0% to 100%

Component Service life: 5 years

Remove the SRAM batteries to preserve battery life during long term storage and when the bicycle is transported. Store the battery at least at 50% charge.

It is recommended that you periodically clean the pulley wheels and clean and grease the cage spring.

Shift the derailleur into the Setup Cog position.

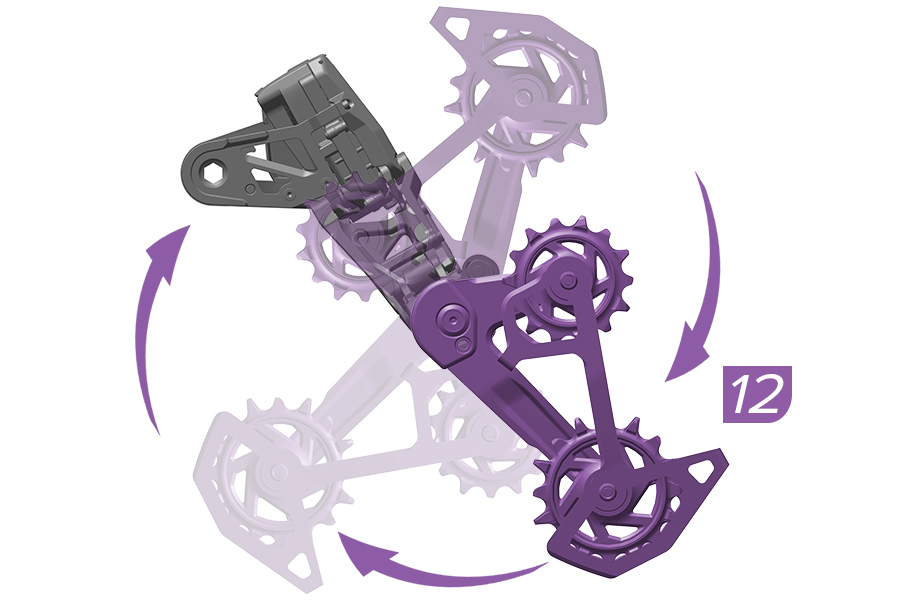

1. Hold the derailleur body and rotate the cage clockwise until it releases from the p-knuckle.

2. Remove the cage.

3. Use a shop towel to wipe off any dirt and debris. Apply a small amount of grease to the spring before re-installing.

4. Install the cage into the p-knuckle.

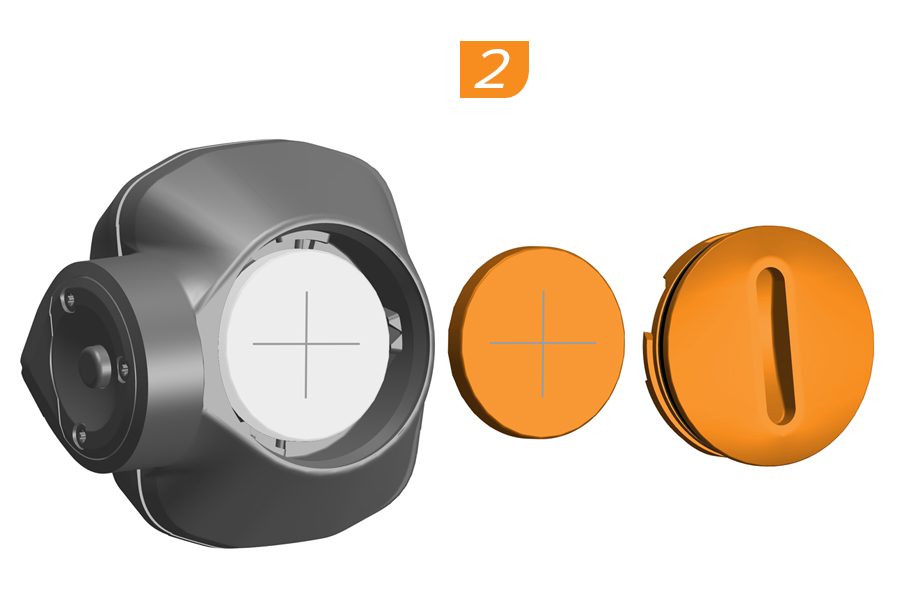

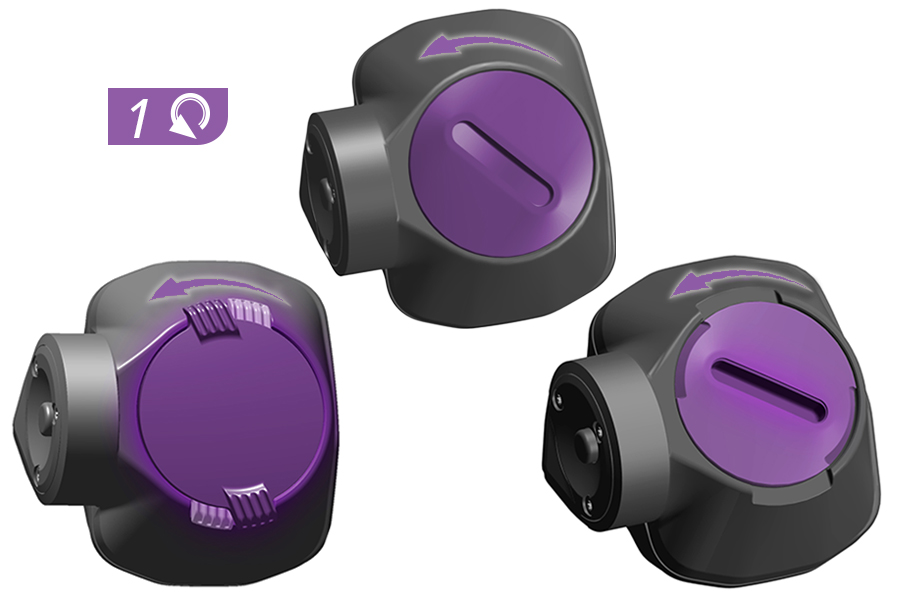

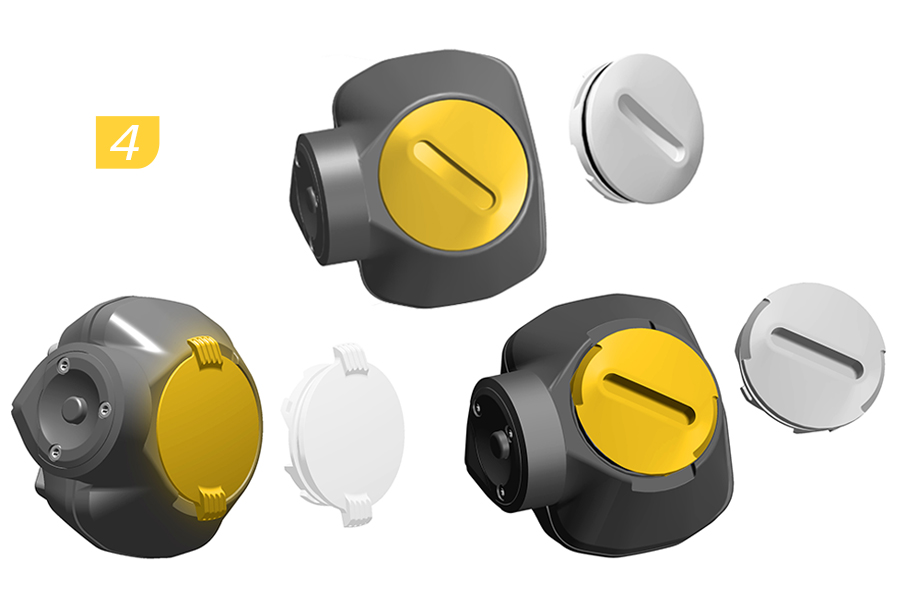

It is recommended that you periodically clean your electronic controllers.

Make sure the outside of the controller is clean before removing the button assembly. Use a damp cloth to wipe off any dirt and debris from the control and the underside of the button assembly. Clean the components with soap and water only. Rinse thoroughly with water and allow the components to dry completely before installing the button assembly.

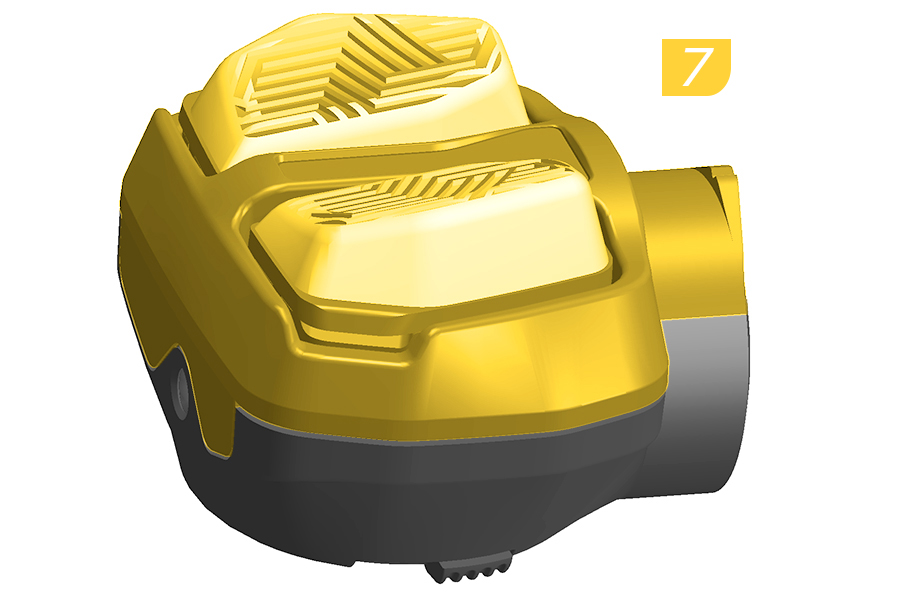

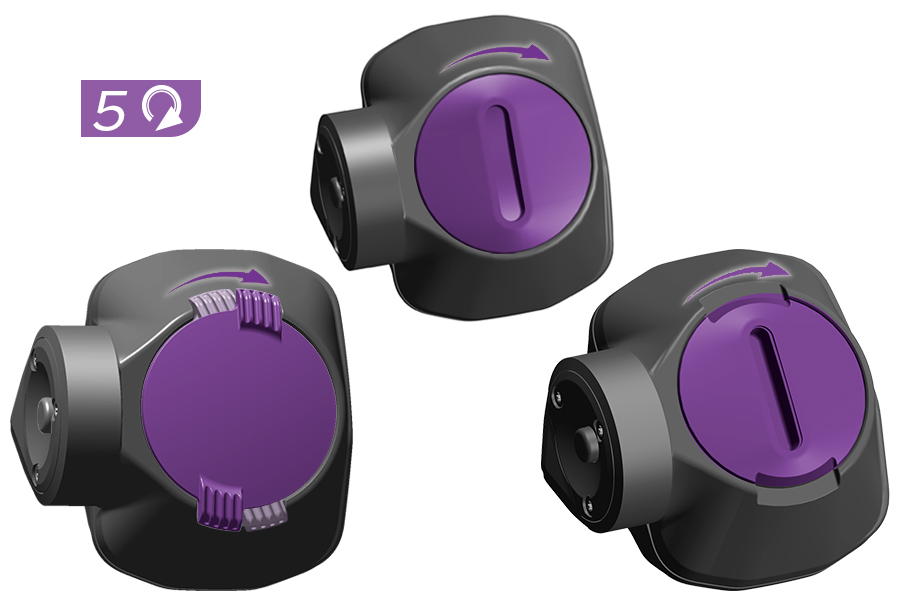

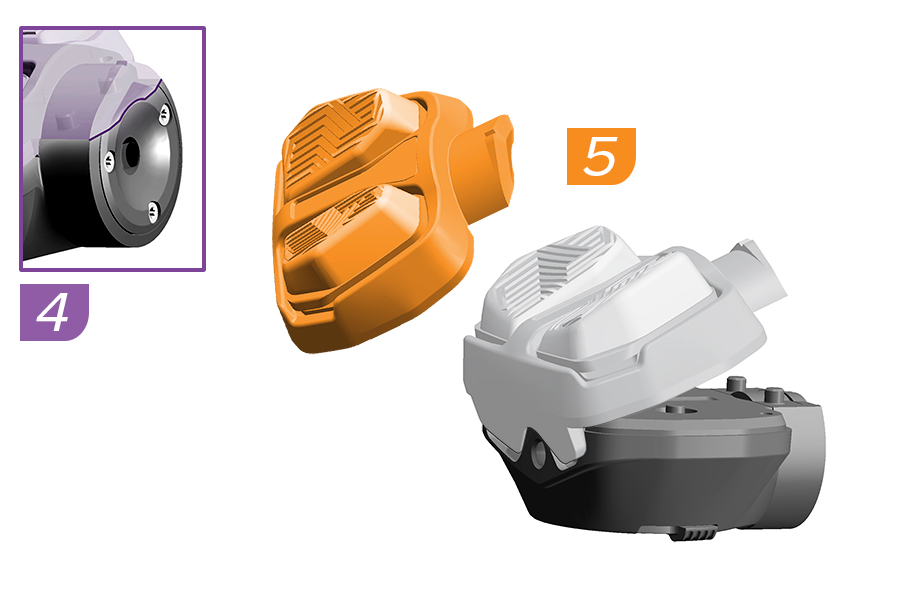

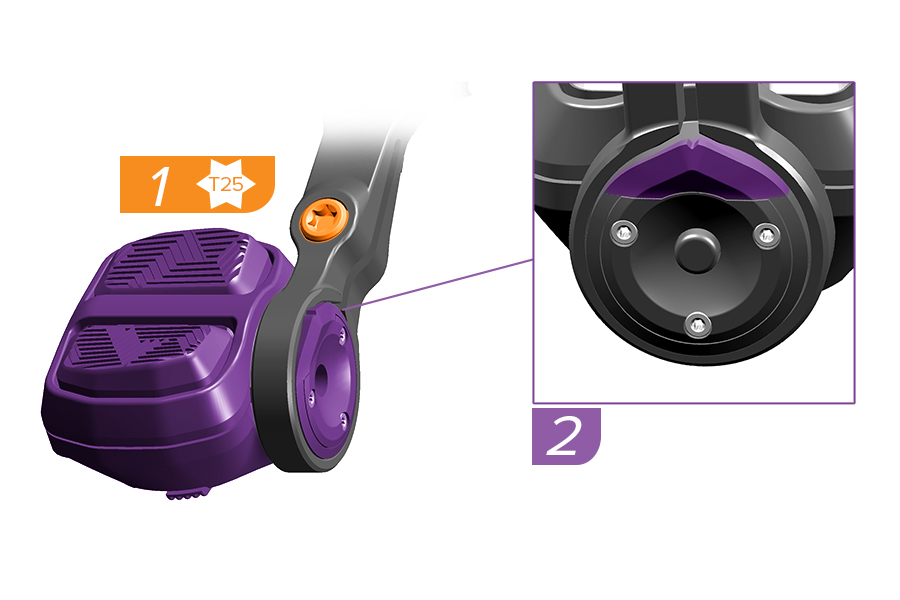

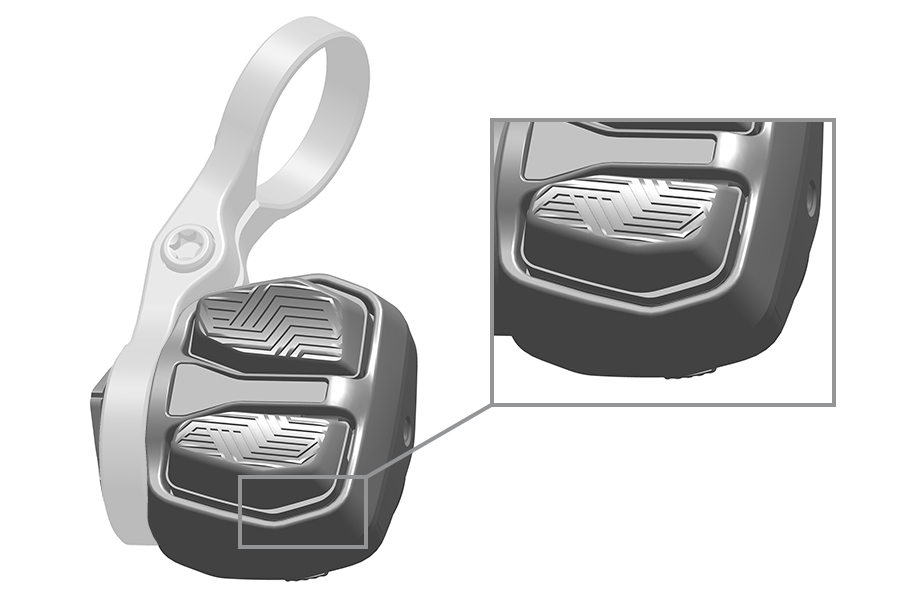

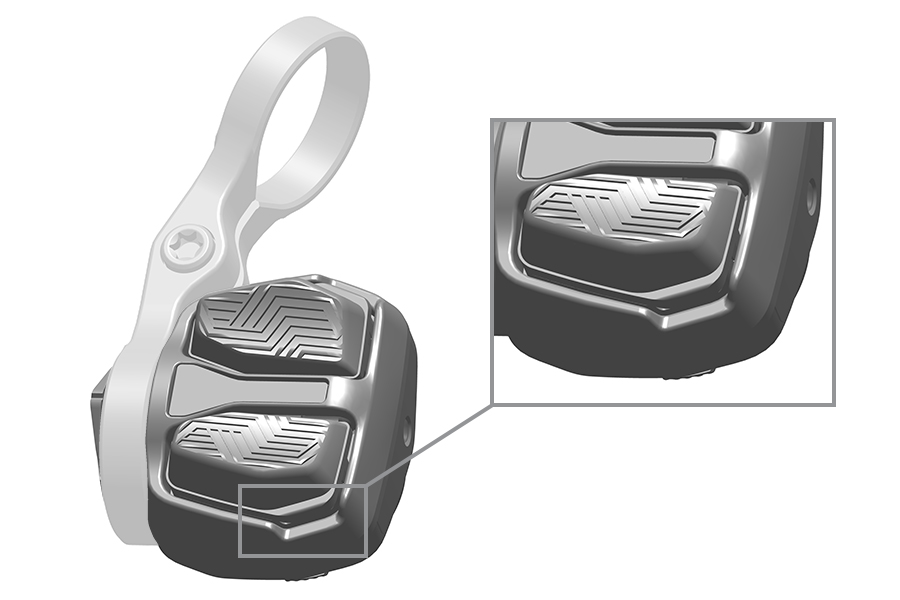

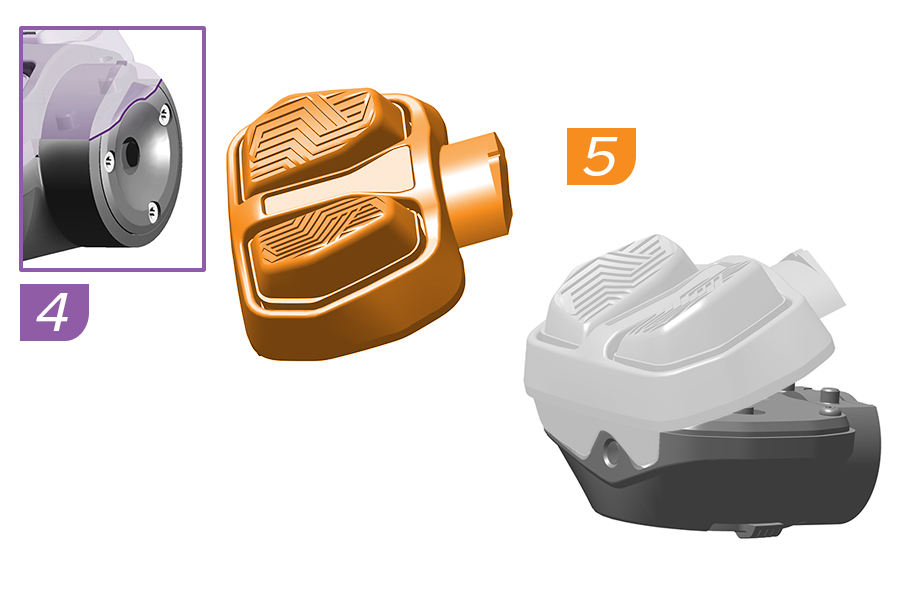

1. Use your fingers to pry off the button assembly by pulling up on the seam above the AXS button.

2. Remove the button interface.

3. Use a damp cloth to wipe off any dirt and debris from the control. Clean the components with soap and water only. Rinse thoroughly with water and allow the components to dry completely.

4. Align the button assembly with the controller. Seat the button onto the LED side of the controller.

5. Press the clamp side of the button until you hear and feel it click in place.

The derailleur cage replacement and damper assembly are interchangeable between SRAM Transmission XXSL, XX, X0, GX, S1000, Eagle 90 and Eagle 70 derailleurs.

AXS only: Shift the derailleur into the Setup Cog Position (Z7) before service.

Eagle 90 and Eagle 70: Install a 4 or 5 mm hex wrench into the hexagonal cutout in the parallelogram to hold the derailleur in the Setup Cog position.

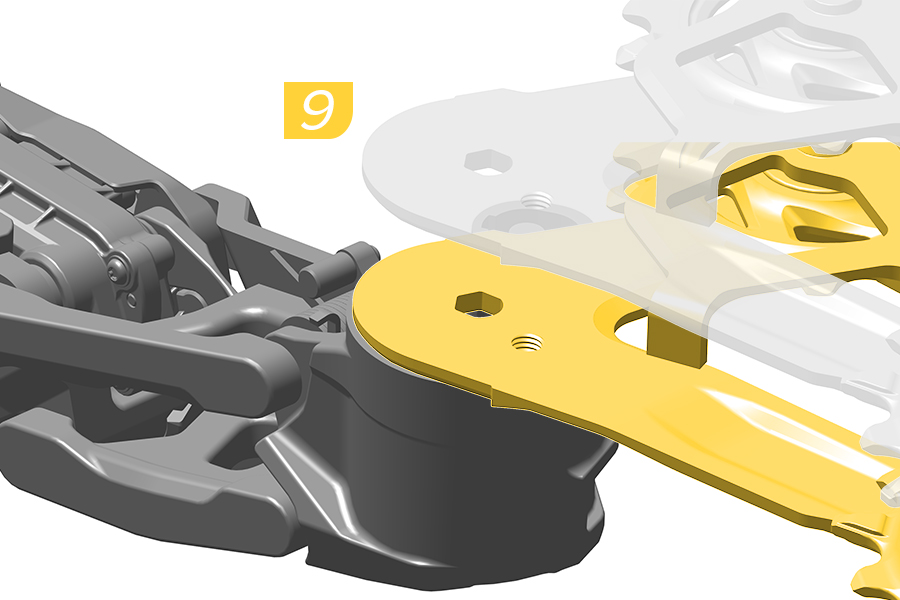

1. Hold the derailleur body and rotate the cage clockwise until it releases from the p-knuckle.

2. Remove the cage.

3. Install the new cage into the p-knuckle.

The derailleur cage assembly is interchangeable between SRAM Transmission XXSL, XX, X0, GX, S1000, Eagle 90, and Eagle 70 derailleurs.

AXS only: Shift the derailleur into the Setup Cog Position (Z7) before service.

Eagle 90 and Eagle 70: Install a 4 or 5 mm hex wrench into the hexagonal cutout in the parallelogram to hold the derailleur in the Setup Cog position.

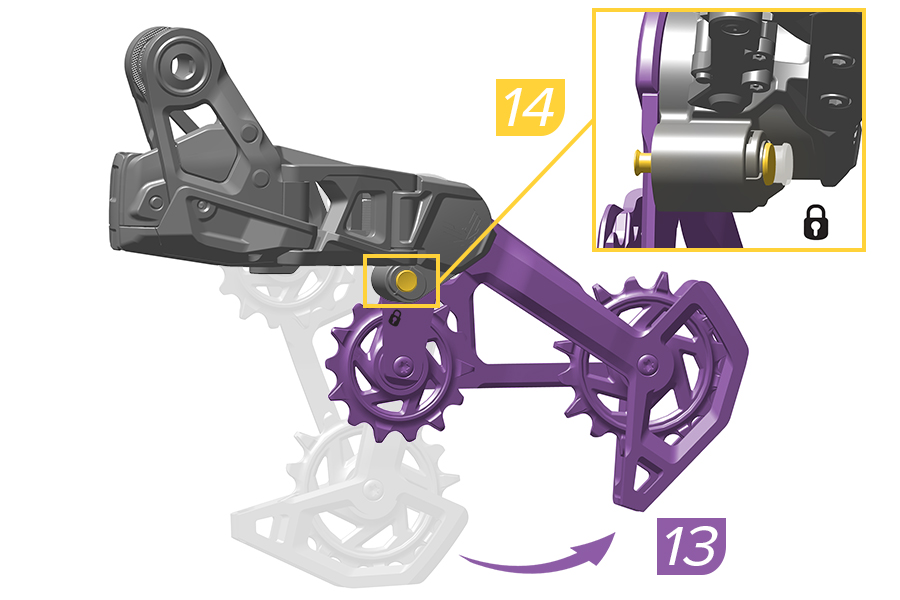

1. Rotate the derailleur cage forward until the lock icon on the cage clears the Setup Key.

2. Press the Cage Mode Button to lock the cage in the Open Mode.

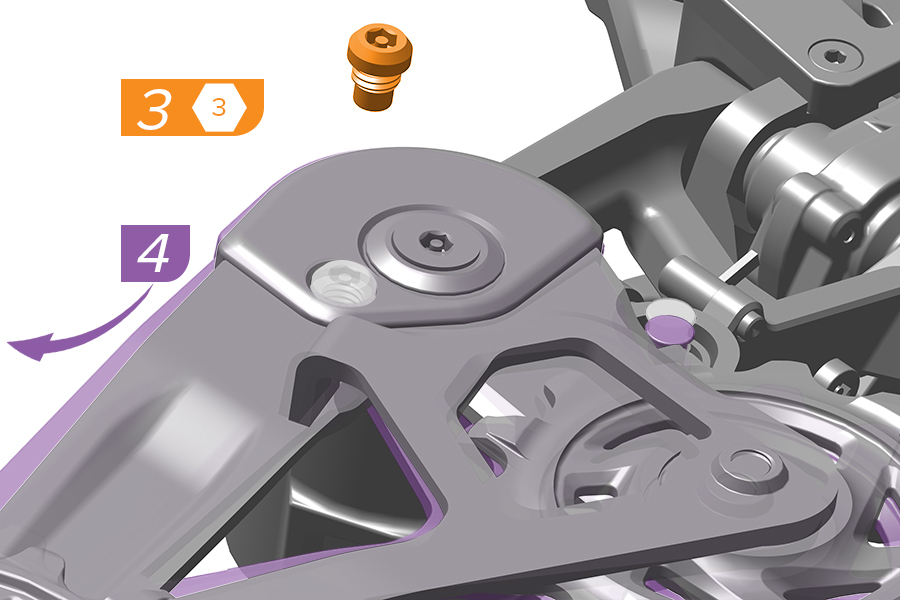

3. Turn the derailleur over and remove the stop pin bolt.

4. Rotate the derailleur cage forward to release the Cage Mode button from the fully extended position.

5. Hold the derailleur body and rotate the cage as shown.

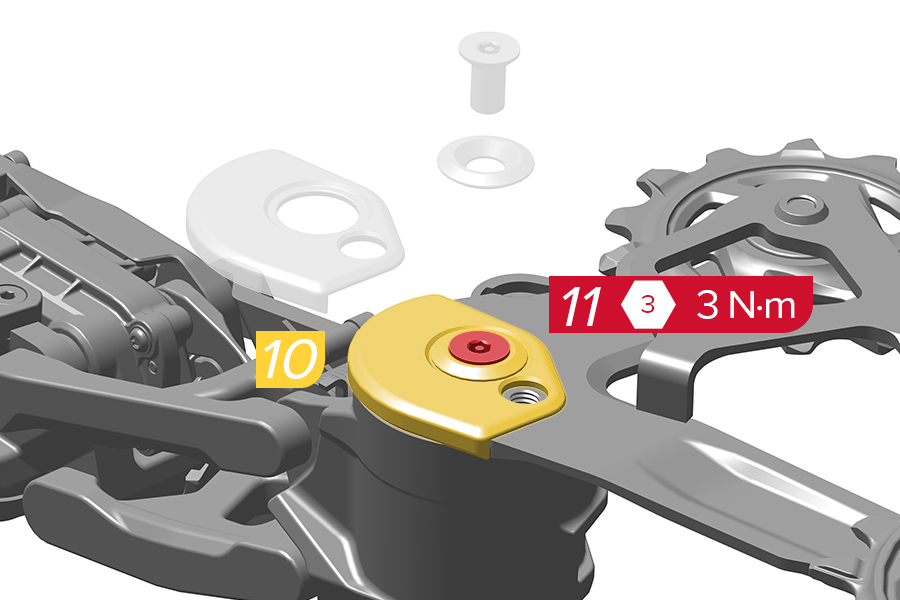

6. Loosen and remove the cage screw

7. Remove the washer and plastic cage protector.

8. Remove the cage assembly.

9. Install the new cage assembly.

10. Install the plastic cage protector and washer with the flat side facing the derailleur.

11. Install and tighten the cage screw.

12. Hold the derailleur body and rotate the cage as shown.

13. Rotate the derailleur cage forward until the lock icon on the cage clears the Setup Key.

14. Press the Cage Mode Button to lock the cage in the Open Mode. This will hold the derailleur cage in place until the stop pin bolt can be installed

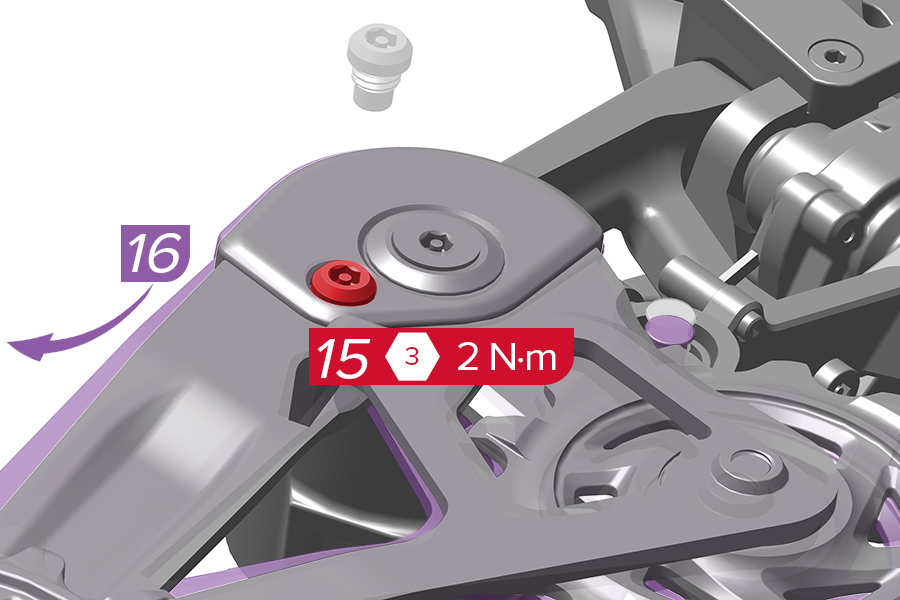

15. Install and tighten the stop pin bolt.

16. Rotate the derailleur cage forward to release the Cage Mode button from the fully extended position.

Make sure the controller is clean before opening the battery latch. Use a damp cloth to wipe off any dirt and debris from the controller. Clean the components with soap and water only. Rinse thoroughly with water and allow the components to dry completely before opening.

1. If you have a slotted battery cover, use a coin to turn the battery cover counter-clockwise to open the battery cover. If there is no slot, use your finger to turn and open the battery cover.

2. Remove the cover. Remove the battery.

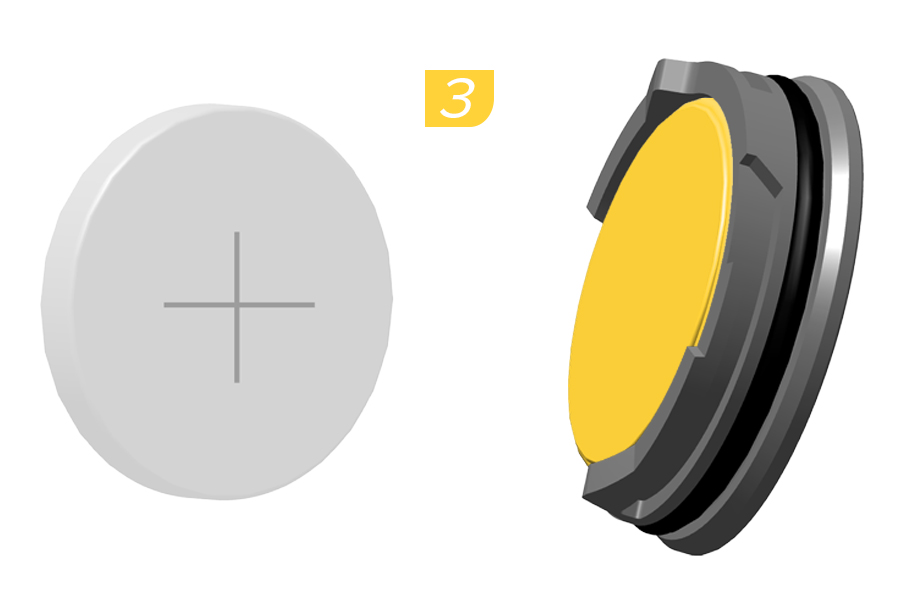

3. Insert a new CR2032 battery with the positive + sign facing into the cover.

4. Reinstall the battery cover.

5. Use your finger or a coin to turn the cover clockwise to lock it into place.

Make sure the controller is clean before removing the button assembly. Use a damp cloth to wipe off any dirt and debris from the controller. Clean the components with soap and water only. Rinse thoroughly with water and allow the components to dry completely before opening.

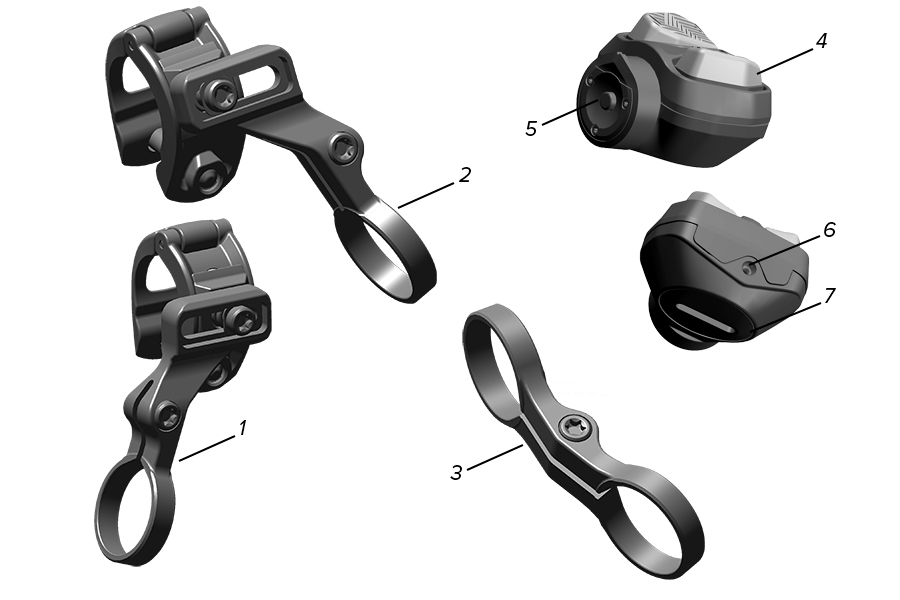

1. Loosen the clamp bolt.

2. Rotate the Pod Controller with the pointed tip aligned with the open slot in the clamp.

3. Remove the Pod from the clamp.

4. Use your fingers to pry off the button assembly by pulling up on the seam above the AXS button.

5. Remove the button interface.

Align a new button assembly with the controller.

6. Seat the button onto the LED side of the controller.

7. Press the clamp side of the button until you hear and feel it click in place.

Make sure the controller is clean before removing the button assembly. Use a damp cloth to wipe off any dirt and debris from the controller. Clean the components with soap and water only. Rinse thoroughly with water and allow the components to dry completely before opening.

1. Loosen the clamp bolt.

2. Rotate the Pod Controller with the pointed tip aligned with the open slot in the clamp.

3. Remove the Pod from the clamp.

4. Use your fingers to pry off the button assembly by pulling up on the seam above the AXS button.

5. Remove the button interface.

Align a new button assembly with the controller.

6. Seat the button onto the LED side of the controller.

7. Press the clamp side of the button until you hear and feel it click in place.

Make sure the controller is clean before removing the button caps. Use a damp cloth to wipe off any dirt and debris from the control. Clean the components with soap and water only. Rinse thoroughly with water and allow the components to dry completely before opening.

Identify the type of button caps on the Pod Controller.

Proceed to the Pod Ultimate Snap On Button Cap Replacement section for button caps that contain a notch on the Pod Controller.

Proceed to the Pod Ultimate Bolt On Button Cap Replacement section for button caps that do not contain a notch on the Pod Controller.

Pod Ultimate Snap On Button Cap Replacement

1. Use your fingers to remove the button cap at the notch on the controller.

2. Choose your desired button cap configuration.

3. Turn the button cap over and remove the liner from the adhesive.

4. Orient the new button cap so the tab is aligned at the notch. Press the cap onto the controller button until you hear and feel it snap in place.

5. Press and hold each button cap for 30 seconds for adhesion.

Pod Ultimate Bolt On Button Cap Replacement

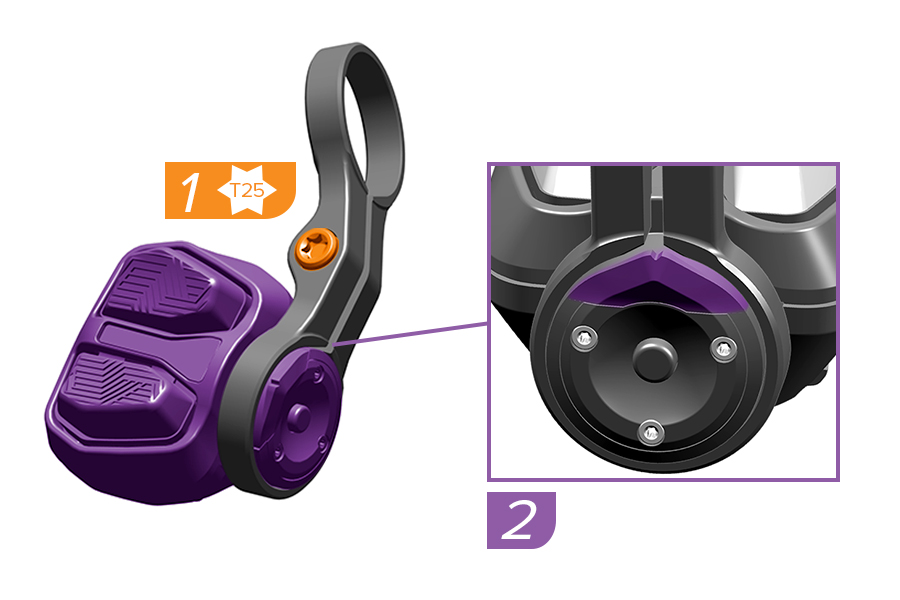

1. Loosen the clamp bolt.

2. Rotate the Pod Controller with the pointed tip aligned with the open slot in the clamp.

3. Remove the Pod from the clamp.

4. Use your fingers to pry off the button assembly by pulling up on the seam above the AXS button.

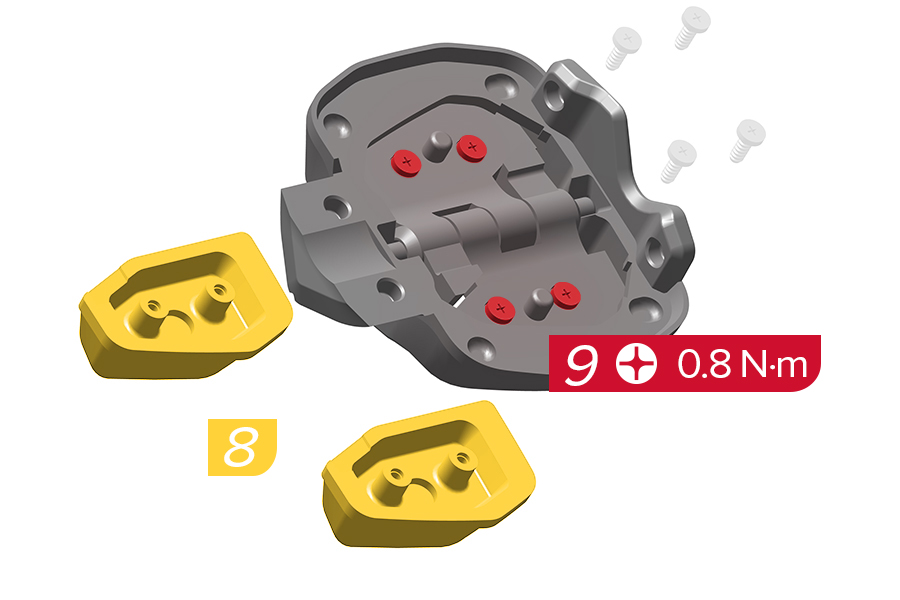

5. Remove the button interface and turn the button assembly over.

6. Remove the screws on the back side of the button caps.

7. Remove the button caps.

8. Install new button caps.

9. Install and tighten the screws on the back of the button caps.

10. Align the button assembly with the controller. Seat the button on the LED side of the controller first.

11. Press the clamp side of the button until you hear and feel it click in place.

You must use the SRAM XX bash guards that match the tooth count of your chainring; they are not interchangeable with X0/GX/S1000/SL90 or SL70 chainrings or between chainring sizes. Two bash guards can be mounted for full coverage, or as a single bash guard. Guards can be installed without removing the chainring from the crank. Guard installation is optional.

Routinely check the chainring bolts for the correct torque values; never ride with loose bolts. Changing chainring size may result in a new chain length for your bicycle. You must repeat the installation procedure in the PREPARE section.

1. Install the guard into the front of the ring, between the crankarm and chainring, through the chainring opening.

2. Install the bolts into the guard.

3. Install the chainring with a guard onto the drive side crankarm with the new mounting hardware.

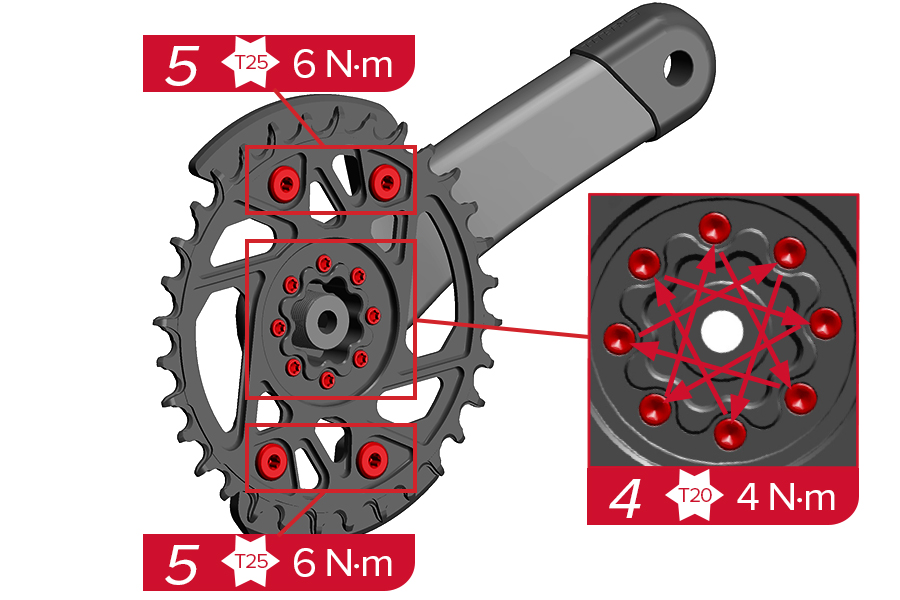

4. Tighten the mounting bolts 1 turn in an alternating sequence until a torque of 4 N·m (35 in-lb) is achieved for each bolt.

5. Tighten the bolts on the guard.

You must use the SRAM X0/GX/S1000/Eagle 90/Eagle 70 bash guards that match the tooth count of your chainring; they are not interchangeable with XX chainrings or between chainring sizes. Two bash guards can be mounted for full coverage, or as a single bash guard. Guards can be installed without removing the chainring from the crank. Guard installation is optional.

Routinely check the chainring bolts for the correct torque values; never ride with loose bolts. Changing chainring size may result in a new chain length for your bicycle. You must repeat the installation procedure in the Prepare section.

1. Install the guard into the front of the ring, between the crankarm and chainring.

2. Install the guard backplate washers through the openings on the backside of the chainring.

3. Install the bolts through the backplate and chainring into the guards.

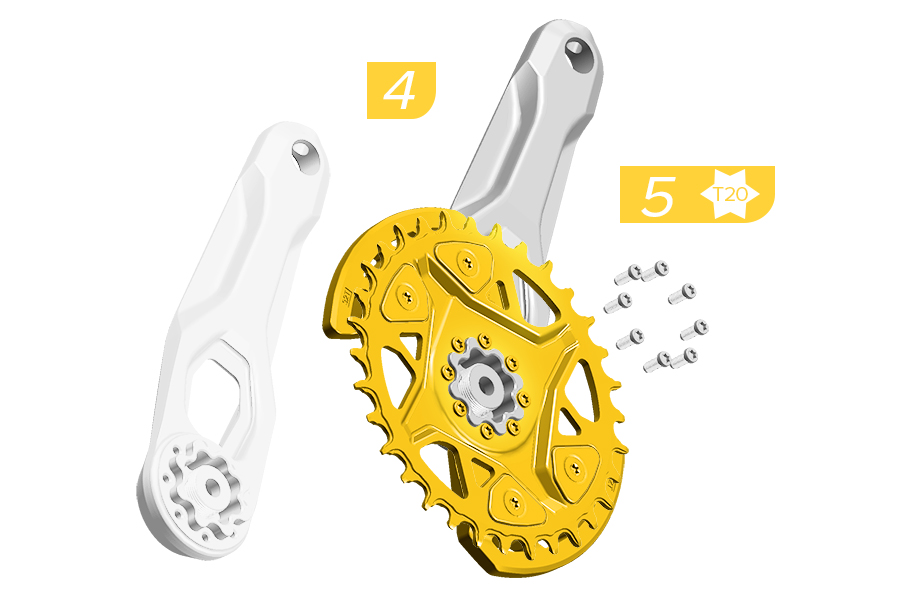

4. Install the chainring with guard onto the drive side crank arm.

5. Install the new mounting hardware.

6. Tighten the mounting bolts 1 turn in an alternating sequence until a torque of 4 N·m (35 in-lb) is achieved for each bolt.

7. Tighten the bolts on the guard backplate washers.

For E-Bikes that do not use the SRAM Aeroguard, you must consult your frame manufacturer for instructions on removing and re-installing the chain guide or chain guard. You must not operate the E-Bike without a chain guide or chain guard.

1. Remove the drive side crankarm.

2. Remove the six Safety Clips from the backside of the Aeroguard, if applicable.

3. Remove the Aeroguard from the chainring, if applicable.

4. Use a chain whip to hold the chainring in place. Use an 8-Notch bottom bracket tool to remove the lockring.

5. Install a SRAM Chainring Extraction tool onto the driver spindle. Center the pin of a two-arm gear puller into the tool and remove the chainring.

6. Align the six recessed beams of the new chainring with the six cutouts on the Aeroguard. For chainrings equipped with different aeroguards, you must consult the E-Bike manufacturer's instructions.

7. Press the Aeroguard onto the beams of the chainring. You should hear and feel it snap in place.

8. Install new Safety Clips.

9. Install the chainring onto the drive unit spindle.

10. Install the lockring.

11. Use a chain whip to hold the chainring in place and tighten the lockring.

12. Apply grease to the spindle.

13. Install the drive side crankarm onto the spindle.

14. Tighten the crankarm bolt.

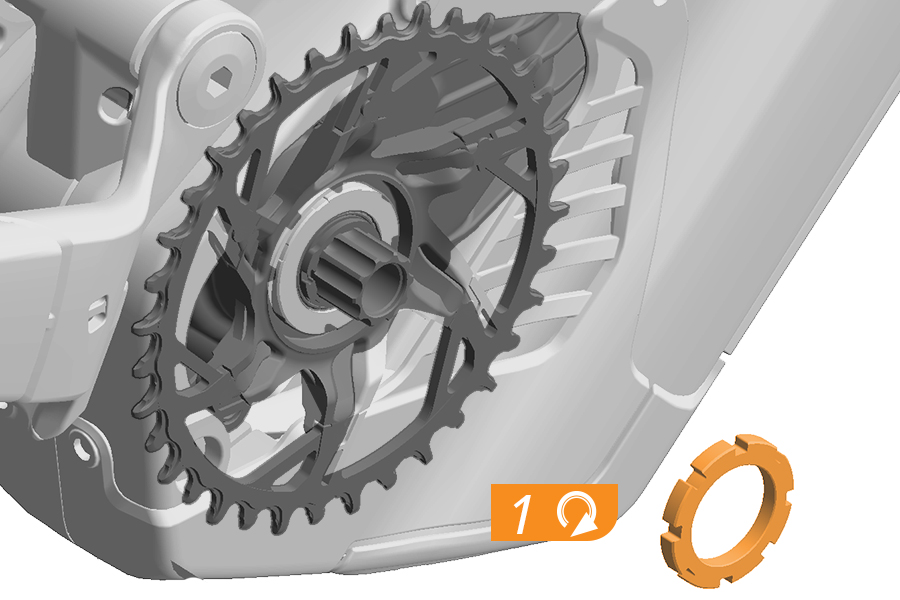

1. Use the Bosch lockring tool to remove the lockring from the Bosch motor spindle. The Bosch lockring is reverse threaded.

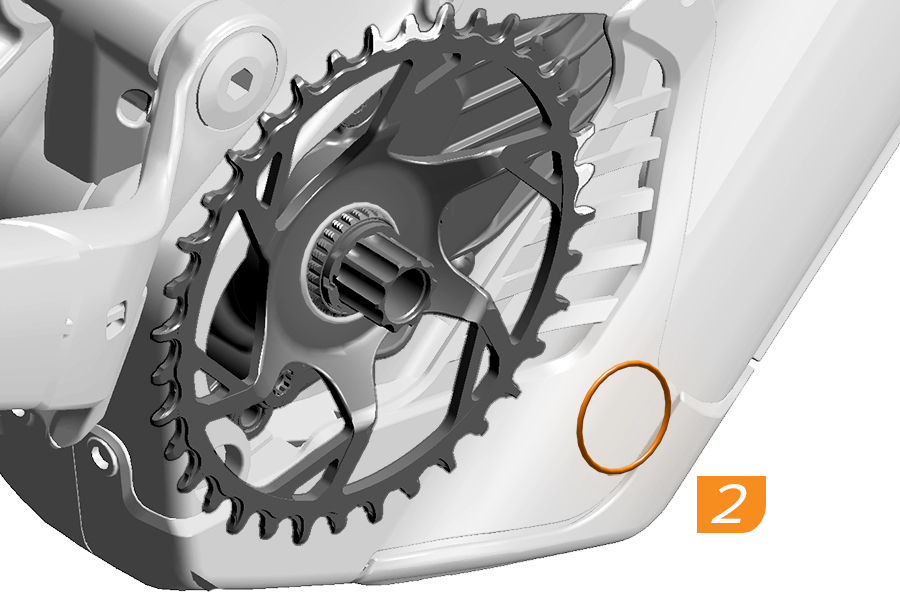

2. Remove the o-ring from the spindle, if applicable.

3. Remove the chainring from the spindle.

4. Remove the spacer, if applicable.

Check that the circlip is visible before you install the new chainring.

5. Install the new T-Type chainring.

6. Use the Bosch lockring tool to tighten the lockring to the maximum torque specified by the drive unit manufacturer.

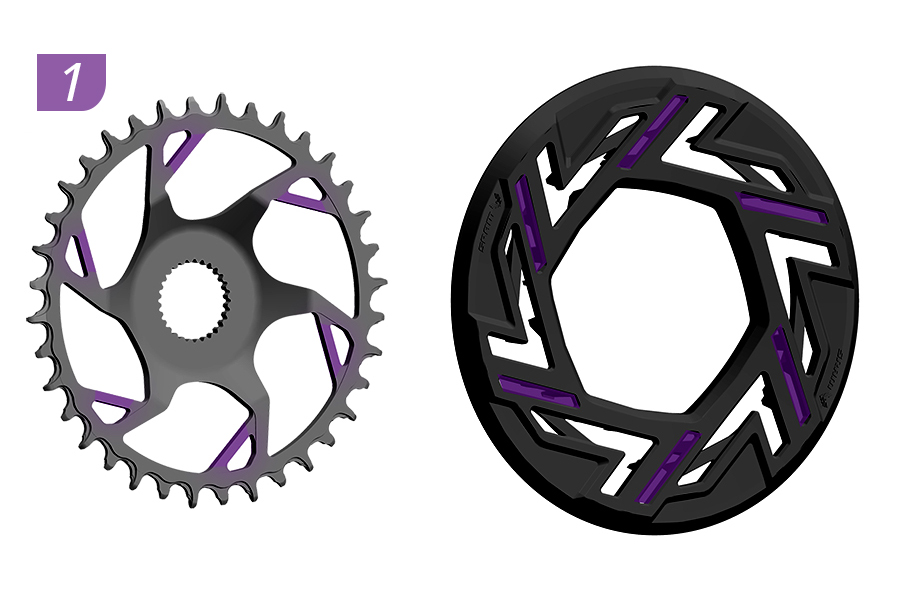

1. Align the six recessed beams of the chainring with the six cutouts on the aeroguard.

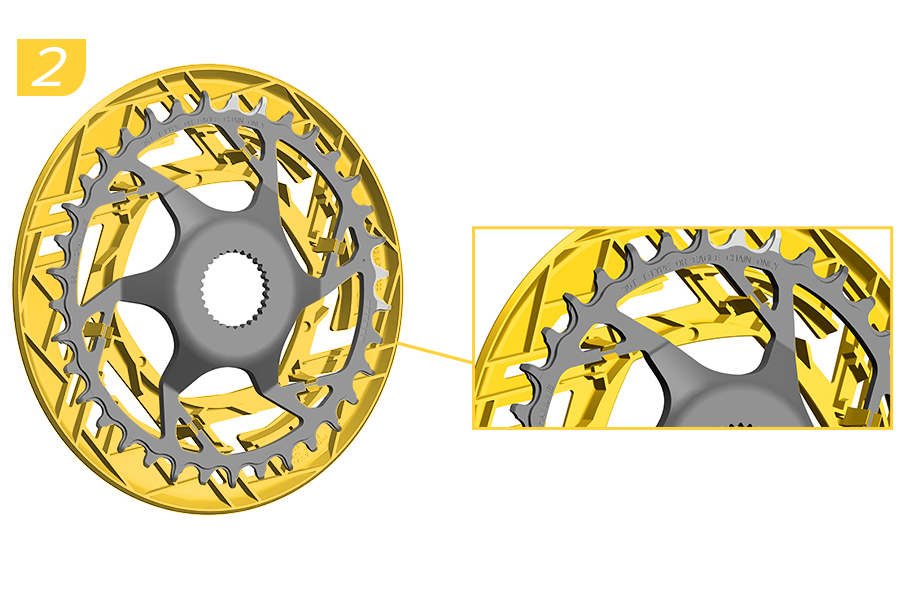

2. Press the aeroguard onto the beams of the chainring. You should hear and feel it snap in place.

♻ For recycling and environmental compliance, please visit sram.com/en/company/about/environmental-policy-and-recycling

Consult your E-Bike Manufacturer for compact and full-size battery recycling information.

Replace the SRAM battery with an authentic SRAM battery only.

Replace the AXS Controller battery with a CR2032 coin cell battery only.

Replace the SRAM power meter battery with a CR2032 coin cell battery only.

Replace the Pedal Sensor battery with a AAA Lithium/Iron Disulfide (Li/FeS2) battery only.

Replace the SRAM or Quarq power meter Battery Sled battery with a AAA Lithium battery only.

Consult the SRAM Battery and Charger User Manual for battery maintenance and specifications.
